Forged Grinding Balls
Forged Grinding Balls
Forged Grinding Balls
- Detail
- Parameters

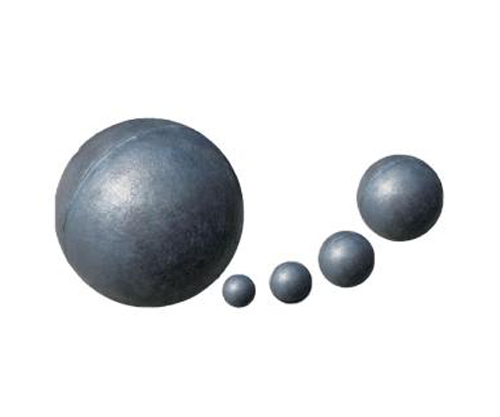

Forged steel balls are widely used in Cement, Mining, Power Plants, and Chemical industries. The forged ball has a performance of good impact resistance, strong toughness, well wear resistance, and not easily broken and out of circularity. It can increase the productivity of the ball mill and reduce the production cost.
Spec Available
Material | Chemical Elements（%） | |||||
C | Mn | Si | Cr | S | P | |
50MN | 0.48-0.56 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
60MN | 0.57-0.65 | 0.50-0.80 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
65MN | 0.62-0.70 | 0.90-1.20 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
75Mn | 0.72-0.92 | 0.70-1.20 | 0.17-0.37 | 0.4-0.6 | ≤0.035 | ≤0.035 |
75MnCr | 0.70-0.85 | 0.70-0.80 | 0.17-0.37 | 0.2-0.7 | ≤0.03 | ≤0.03 |
75SiMn | 0.70-0.90 | 0.70-1.20 | 0.4-0.8 | ≤0.25 | ≤0.03 | ≤0.03 |
B2 | 0.70-0.85 | 0.70-0.80 | 0.17-0.37 | 0.2-0.7 | ≤0.035 | ≤0.035 |
B3 | 0.55-0.65 | 0.75-0.9 | 0.2-0.37 | 0.85-1.2 | ≤0.03 | ≤0.03 |
B4 | 0.58-0.66 | 0.65-0.80 | 1.6-1.9 | 0.7-0.9 | ≤0.03 | ≤0.03 |
B6 | 0.75-0.95 | 0.9-1.0 | 0.2-0.40 | 0.85-0.95 | ≤0.035 | ≤0.035 |
40Cr | 0.37-0.44 | 0.50-0.80 | 0.17-0.37 | 0.8-1.10 | ≤0.035 | ≤0.035 |
45# | 0.42-0.50 | 0.50-0.80 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
Physical Property & Microstructure
Material | Ak（J/cm2） | Falling Ball Times | Surface（HRC） | Core（HRC） | Microstructure |
50MN | ≥12 | ≥10000 | ≥56 | ≥48 | M+C |
60MN | ≥15 | ≥12000 | ≥58 | ≥50 | M+C |
65MN | ≥15 | ≥12000 | ≥60 | ≥50 | M+C |
75Mn | ≥17 | ≥12000 | ≥60 | ≥52 | M+C |
75MnCr | ≥16 | ≥12000 | ≥60 | ≥50 | M+C |
75SiMn | ≥17 | ≥12000 | ≥60 | ≥54 | M+C |
B2 | ≥15 | ≥12000 | ≥60 | ≥50 | M+C |
B3 | ≥12 | ≥10000 | ≥60 | ≥55 | M+C |
B4 | ≥12 | ≥12000 | ≥60 | ≥55 | M+C |
B6 | ≥15 | ≥12000 | ≥60 | ≥55 | M+C |
40Cr | ≥12 | ≥12000 | ≥60 | ≥55 | M+C |
45# | ≥12 | ≥10000 | ≥52 | ≥45 | M+C |
Martensite Carbide | |||||
Specification
Size（mm） | Tolerance（mm） | Weight（kg/pc） | Quantity（pcs/ton） |
Φ20 | +2 | 0.032 | 31250 |
Φ25 | 0.064 | 15625 | |
Φ30 | 0.11 | 9090 | |
Φ40 | 0.263 | 3802 | |
Φ50 | 0.513 | 1949 | |
Φ60 | +3 | 0.888 | 1126 |
Φ70 | 1.41 | 709 | |
Φ80 | 2.104 | 475 | |
Φ90 | 2.996 | 333 | |
Φ100 | 4.11 | 243 | |
Φ110 | +4 | 5.457 | 182 |
Φ120 | 7.102 | 140 | |
Φ130 | 9.03 | 110 | |
Φ140 | +4 | 11.278 | 88 |
Φ150 | 13.871 | 72 |
