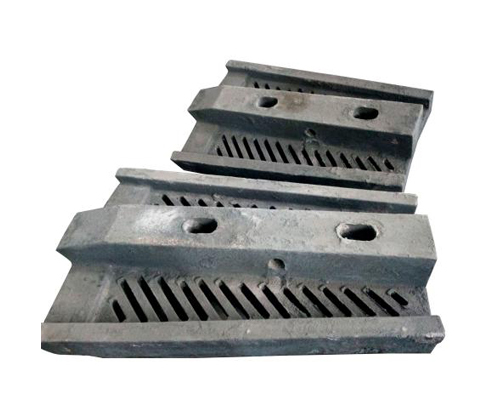

SAG Mill Liner
SAG Mill Liner
SAG Mill Liner
- Detail
- Parameters
Generally, Chromium-GMolybdenum ball mill liner plate is divided into medium Cr-Mo liner plate (A kind of casting steel with the chromium content at 4-6%, the carbon content at 0.4-0.8%)and low Cr-Mo Liner plate(A kind of casting steel with the chromium content at 1.2-2.5%, the carbon content at 0.3-0.6%). Its distinctive feature is to adopt multivariate alloy design. It increases carbide content in the medium carbon alloyed steel, through increasing the Cr-Mo content, the strong carbide forming elements, so as to improve its heat-resisting, wear-resisting performance. As a result, its high strength, strong toughness and good wear resistance properties represent the relatively high level of metal wear resistant materials.
Spec Available
Name | Chemical Elements（%） | |||||||
C | Si | Mn | Cr | Mo | Cu | P | S | |
Medium Cr-Mo Alloyed Liner ZG45Cr5MoRe | 0.4-0.8 | ≤1.2 | 0.6-1.5 | 4-6 | 0.3-1 | 0.3-0.8 | ≤0.04 | ≤0.06 |
Low Cr-Mo Alloyed Liner ZG40CrMoRe | 0.3-0.6 | ≤1.2 | 0.5-1.2 | 1.2-2.5 | 0.3-1 | 0.3-0.8 | ≤0.04 | ≤0.06 |
Physical Property & Microstructure
Name | Surface（HRC） | Ak（J/cm2） | Microstructure |
Medium Cr-Mo Alloyed Liner ZG45Cr5MoRe | ≥48 | ≥20 | M+C |
Low Cr-Mo Alloyed Liner ZG40CrMoRe | ≥40 | ≥30 | M+C |
Martensite Carbide Austenite Pearlite | |||
Specification
Size | Hole Dia.（mm） | Liner Length（mm） | ||
≤40 | ≥40 | ≤250 | ≥250 | |
Tolerance | +2 0 | +3 0 | +2 | +3 |
